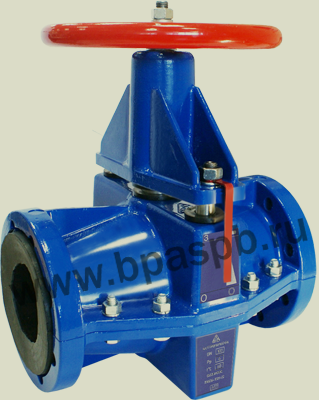

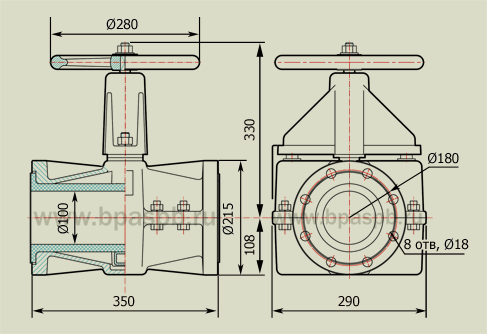

Full Bore Pinch Valve, 33a17pM, P98036M, DN 100 - modernized













Nominal pressure, PN – 6 kgf/cm2 (0,6 MPa).
Temperature of working medium - up to 120OC.

Materials: body - aluminum alloy, sleeve - elastomer.
Main technical description:
· full tight shut-off during all period of operation, even with transportation the strongly duty media;
· full bore design of valves provides the low flow resistance - no more 0,1;
· positive opening design of valves provides the valve’s functioning by working pressure 0,1 kgf/cm2 (0,01 MPa);
· protective coating of body parts;

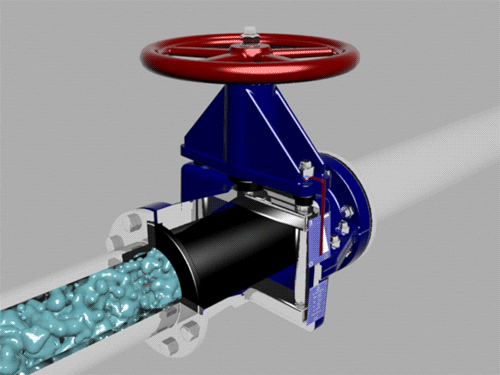

· ability to self-cleaning of the obturator - sleeve;
·  maintainability – the sleeve can be easily replaced without special tools and without attracting of the highly skilled personnel;
· indicator of the extreme positions ‘open – close’;
· design of the running unit provides opening – closing of valve without effort;
· possibility of the valve’s manufacturing with full sealed body;

Pinch valve P98036M will be completed with mating flanges.
