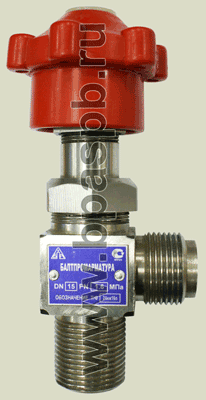

Angle Globe Valve, 24nj16p, BPA23000





Direction of working medium - bilateral.
Full tight shut - off. Working position of valve - any.
Nominal pressure for liquid aggressive and not aggressive media, PN - up to 200 kgf/cm2 (20 ÌPà).

Nominal pressure for liquid and gaseous chlorine, PN - up to 40 kgf/cm2 (4,0 ÌPà).
Working medium: liquid and gaseous chlorine or another aggressive and not aggressive media.
Temperature of working medium - from -70 up to +200oC.
Material of the basic details is Stainless steel.
Sealing materials - Fluoroplastic-to-Metal.
For high reliability of sealing gland in the design the another top seal is stipulated.

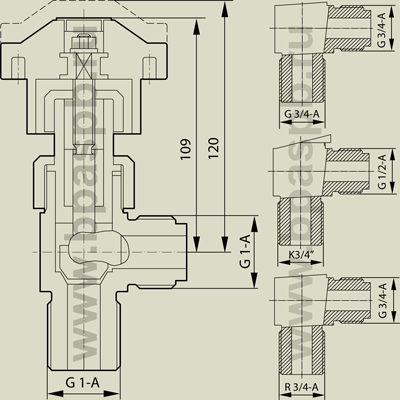

Connection to the pipeline - on the customer's requestany, in accordance with the pictures.
Nominal bore - 10, 15; 20; 25.
Weight - 1,10 kg.
