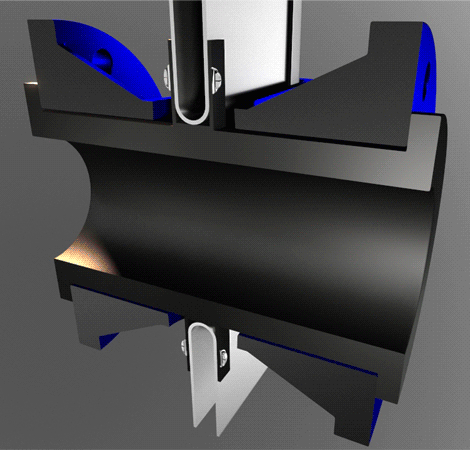

Full Bore Pinch Valve, BPA98014

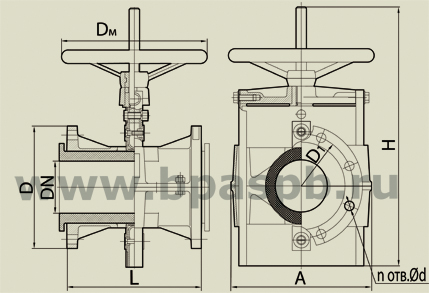

DN D1 D2 D3 H H1 L A Dì d n Weihgt, kg
100 168 235 200 345,5 153,5 260 270 280 18 8 15
150 225 290 255 439 194 310 355 280 18 8 23


Nominal pressure, PN – 6 kgf/cm2 (0,6 MPa).
Connection – flanges.
Working medium: pulp, friable, liquid weakly aggressive and aggressive media with temperature up to 100OC.
Direction of working medium - any.
Full tight shut - off.
Low flow resistance factor - 0,1.
Working position of valve - any.
Version - normal, export, tropical.
Body material - aluminum.
