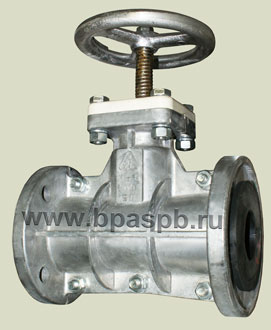

Pinch valve, 33a23r, P98049

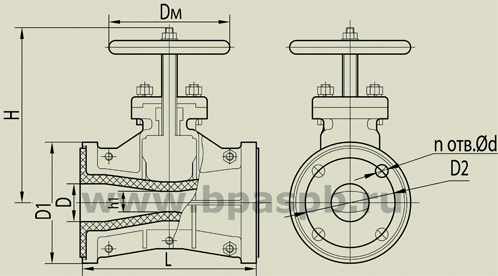

DN

D

D 1

D 2

D M

L

H

h1

d

n

Weight, kg

50

50

160

125

160

230

234

25

18

4

6,3

80

80

195

160

200

310

309

40

18

4

8,8


Note: The version with sleeve positive opening use with pressure up to 0,2 MPa (2 kgf/cm2).

This pinch valve keeps all technical parameters of the product line. Look at: 33а17r, P98036.

Direction of working medium - any.
Full tight shut - off.
Nominal pressure, PN - 0,6 M–a. (6 kgf/cm2)
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive, pulps, liquid and viscous media,
mineral oils and petroleum products.
Version - normal, export, tropical.
Body material - aluminium.
Working position of the valve - any.
Low flow resistance factor - 0,6.
Connection - flanges.
