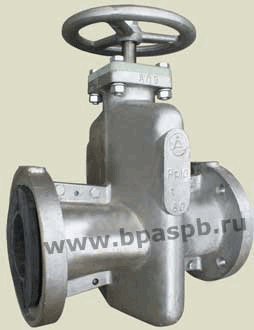

Pinch Valve, 33a26r, BPA98003

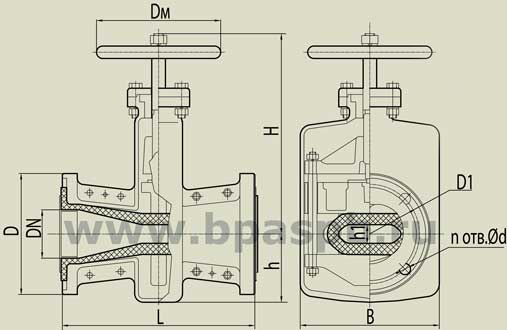

DN 50 80 100 125 150 200
L 230 310 350 400 480 600
H 234 309 428 430 530 530
h 82 110 143 150 200 204
h1 25 40 60 60 100 92
D 160 195 215 245 280 335
d 18 18 18 18 23 23
n 4 4 8 8 8 8
D1 125 160 180 210 240 295
B 180 224 310 336 400 484
DM 160 200 280 280 450 450
Weight, no more, kg 7 13 25,5 28,5 51,5 69


Note: The version with sleeve positive opening use with pressure PN up to 2 kgf/cm2 (0,2 MPa).

Nominal pressure PN 10 kgf/cm2 (1, 0 MPa).
Connection to the pipeline - flanges.
Sizes of flanges of the pipeline - in accordance with State Standard.
Full tight shut - off.
Direction of working medium - any.
Working position of the valve - any.
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive media, mineral oils and petroleum products.
Version - normal, export, tropical.
Low flow resistance factor for DN 50, 80, 100, 125 - 0.6, for DN 150, 200 - 0.4.
Body material - aluminum.
