Pinch Valve with Non-rising stem, 33a27r, BPA98000

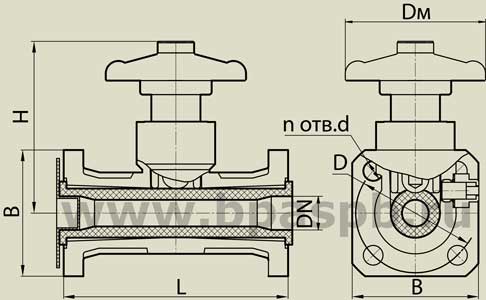

DN L B D DM H d n Weight, kg
25 160 90 85 100 123 14 4 1,9
32 180 105 100 100 156 18 4 2,9

Nominal pressure, PN Ц up to 1,6 MPa (16 kgf/cm2).
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive media, mineral oils and petroleum products.
Full tight shut - off.
Body material - aluminum.
Valve stem seal - rubber sleeve.
Working position of the valve - any.
Full bore. Direction of working medium - bilateral.
Sealed body. Version - normal, export, tropical.
Connection Ц flanges.
Low flow resistance factor - 0,1.

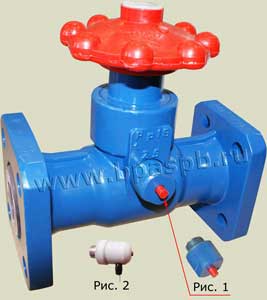

Mechanical indicator of sleeve's rupture availability (pic. 1).
De the special order the valve is completed with the electromechanical (normally closed contact) indicator of sleeve's rupture (pic. 2).
