Pinch Valve with Pneumatic Actuator, 33a624r, P98050

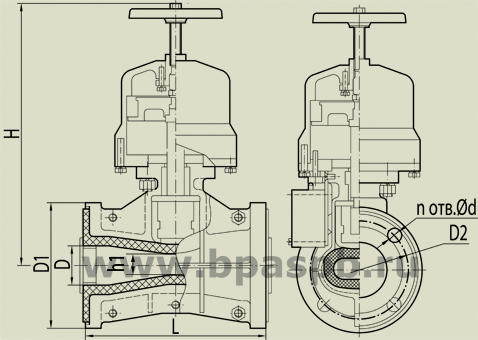

DN

D

D 1

D 2

L

H

h1

d

n

Weight, kg

50

50

160

125

230

435

25

18

4

10

80

80

195

160

310

465

40

18

4

15

Note: The version with sleeve positive opening use with pressure Pwork PN up to 0,2 MPa (2 kgf/cm2).

Direction of working medium - any.
Full tight shut - off.
Nominal pressure, PN - 0,6 M–a. (6 kgf/cm2)
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive, pulps, liquid and viscous media,
mineral oils and petroleum products.
Version - normal, export, tropical.
Body material - aluminium.
Pressure of working air at pneumatic actuator, Pwork. 0,5 - 0,6 Mpa (5 - 6 kgf/cm2).
Low flow resistance factor - 0,6.
Connection - flanges.

Working valve's position -with actuator up.
