Full Bore Pinch Valve with Pneumatic Actuator, 33a627r, BPA98001

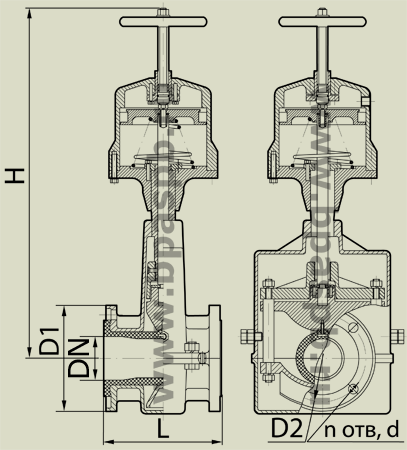

DN D1 D2 L H d n Weight, kg
50 160 125 180 286 18 4 12,8
80 195 160 210 340 18 4 21,6


Note: The version with sleeve positive opening use with pressure PN up to 0,2 MPa (2 kgf/cm2).

Full bore.
Nominal pressure, PN Ц1, 6 MPa.(16 kgf/cm2).
Direction of working medium - any.
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive media, mineral oils and petroleum products.
Body material - aluminum.
Working position - any.
Low flow resistance factor - 0,1.
Sleeve rupture alarm available.
Sealed body.
Pressure of working air at pneumatic actuator, Pwork 0,5 - 0,6 MPa (5 - 6 kgf/cm2).

Mechanical indicator of sleeve's rupture availability (pic. 1).
By the special order the valve is completed with the electromechanical (normally closed contact) indicator of sleeve's rupture (pic. 2).
