Pinch Valve with Pneumatic Actuator, 33a627r, BPA98001

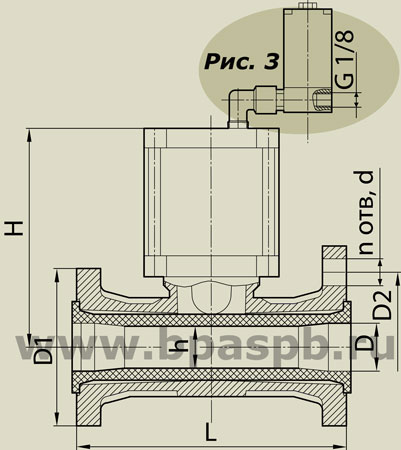

DN D D1 D2 L H h d n Weight, kg
25 25 90 85 160 123 19 14 4 3,2
32 32 105 100 180 140 28 18 4 3,9


Nominal pressure, PN – up to 16 kgf/cm2 (1,6 MPa).
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive media, mineral oils and petroleum products.
Direction of working medium - any.
Full tight shut - off.
Connection – flanges.
Body material - aluminum.
Low flow resistance factor - 0,1.
Sealed body.
Version - normal, export, tropical.
Operaiting air pressure P oper 5 - 6 kgf/cm2 (0,5-0,6 MPa).
Working position - with actuator up.

Sleeve rupture alarm available.

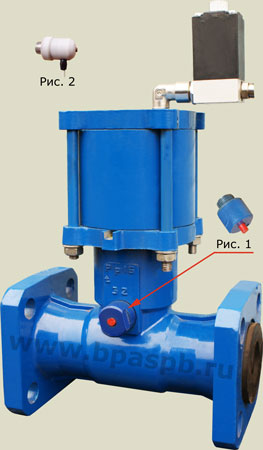

Mechanical indicator of sleeve's rupture availability (pic.1).
By the special order the valve is completed with the electromechanical (normally closed contact) indicator of sleeve's rupture (pic. 2).

By the customer request the Pinch Valve DN 25-32 could be completed with the pneumatic distributing valve with electromagnetic drive,
supply voltage - 220V.
