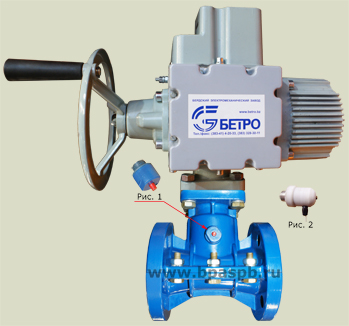

Pinch Valve with BETRO electric actuator, 33a929r1, BPA98001

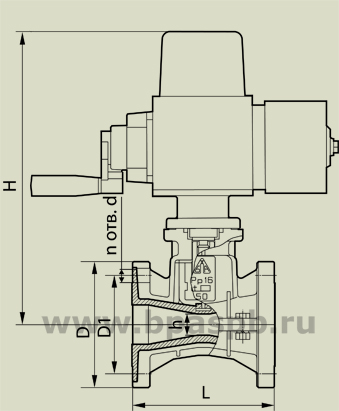

DN D D1 h L H d n Weihgt, kg
50 160 125 27 180 503 18 4 21
80 195 160 45 210 577 18 4 2,3
100 215 180 58 230 630 18 8 46


Nominal pressure, PN – 16 kgf/cm2 (1,6 MPa).
Connection – flanges.
Working medium: liquid media for water supply and sewerage systems, not aggressive and aggressive, viscous media, pulp,mineral oils
and petroleum products.
Direction of working medium - any.
Full tight shut - off.
Low flow resistance factor - 0,6.
Sealed body.
Body material - aluminium.
Mechanical indicator of sleeve's rupture availability. By special order pinch valve is completed with electromachanical indicator.
Version - normal, export, tropical.



DN Actuator type (multi-turn) Engine power (kw) Current Adjustment of socket limitation of torque moment Nm (kgs m)
voltage (v) frequency (Hz)
50 EP-3-100-24-A2-05-B 0,35-1,1 220/380 50 25 (2,5)
80 46 (5)
100 EP-3-300-25-B1-0-A 100 (10)


Working position of a valve - any.
Normal, Explosion proof types of electric actuator available.
