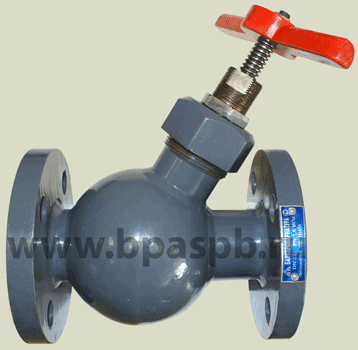

Globe Valve BPA 21005








DN

PN

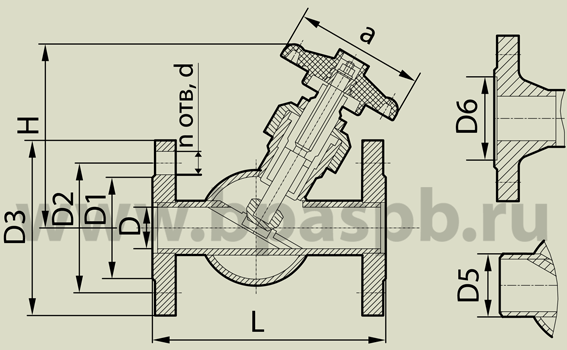

Dimensions, mm

 Connection

Weight, kg
D D1 D2 D3 D4 D5 D6 L H n d
32 16 32 78 100 135 100 - - 180 124 4 18 flanged 6,5
40 78 100 135 - 66 180 4 18 flanged 7,1
63 78 110 150 - 66 260 4 22 flanged 9,3
- - - 50 - 150 - - welding 3,5
40 16
40
63		 40 88 110 145 160 - - 200 158 4 18 flanged 8
88 110 145 - 76 200 4 18 flanged 8,6
88 125 165 - 76 260 4 22 flanged 11,8
- - - 50 - 144 - - welding 4,5
50 16
40
63		 50 102 125 160 - - 230 190 4 18 flanged 11
102 125 160 - 88 230 4 18 flanged 12
102 135 175 - 88 300 4 22 flanged 15,7
- -   60 - 170 - - welding 7



DN PN Table of figures Tightness Class Tworking - 0C Working medium Main Parts Material

32

40

50

 16 15s65nj; B from -30 to +350 Liquid not aggressive medium. Carbon steel
40 15s22nj;
63 15s71nj;, 15s71nj1*
16 15s65p; A from -30 to +200 Liquid and gaseos not aggressive medium.
40 15s22p
63 15s71p, 15s71p1*
16 15nj65nj B from -70 to +350 Liquid and gaseous aggressive medium. Stainless steel
40 15nj22nj
63 15nj71nj, 15nj71nj1*
16 15nj65p A from -70 to +200
40 15nj22p
63 15nj71p, 15nj71p1*

* welding connection. Mmanufacturing for diferent PN by customer's request is possible.

Direction of working mediа - any.
Low flow resistance factor - not more than 4,5.
