Pinch Valve with 'ZEIM' Electric Actuator, 33a929r1, BPA98001

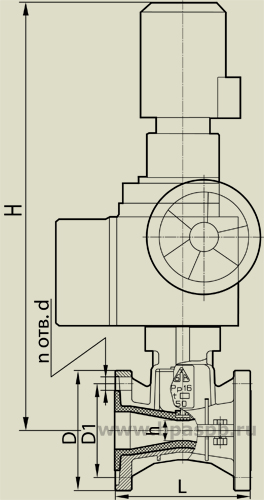

DN D D 1 h n d L H Weight, kg
50 160 125 27 4 18 180 632 28
80 195 160 45 4 18 210 662 30
100 215 180 58 8 18 230 636 53

Nominal pressure, PN Ц up to 1,6 Mpa (16 kgf/cm2).
Valve's versions - normal, export, tropical.
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive media, mineral oils and petroleum products.
Direction of working medium - any.
Normal, Explosionproof electric actuator versions available.
Full tight shut - off.
At diferent valve's position must be instolled additional supporting pier for electric actuator.
Body material - aluminum.
Valve working position - any with additional supporting pier for actuator, exept position with actuator down.
Sealed body.
Connection Ц flanges.
Low flow resistance factor - 0,6.

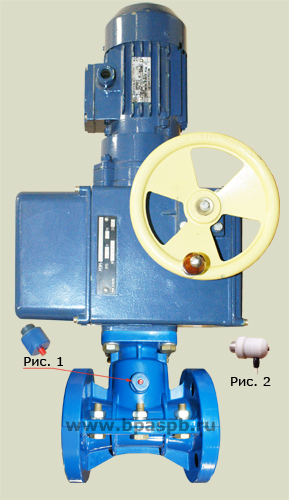

Mechanical indicator of sleeve's rupture availability (pic.1).
By the special order the valve is completed with the electromechanical (normally closed contact) indicator of sleeve's rupture (pic. 2).


DN (mm)

Type of Actuator

(multi-turn)

Engine power  (W) Current

Clutch's setting of torque limiting

Nm (kgf m)

Voltage (V) Frequency (Hz)
50 –≈ћ-ј3 180 380 50 25 (2,5)
80 46 (5)
100 –≈ћ-¬5 1100 100 (10)


Valve working position - any with additional supporting pier for actuator, except position with actuator down.

Actuator's versions - normal and explosion-proof.

By the customer request the electric actuator could be completed with the position sensor.
