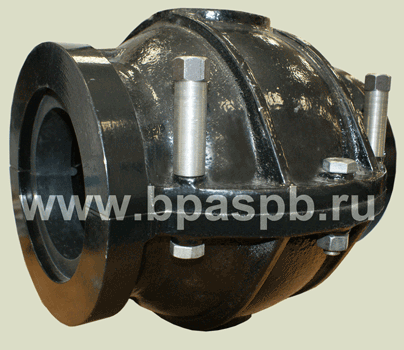

Repair-jointing Coupling BPA08001








The Coupling is designed to eliminate leakage at damaged pipe's parts (cracks, flaws, etc.) and installation of outside or buried,
steel or cast iron pipes and used for sealing of joined bell mouthing and cylindrical parts of the pipeline.

Nominal pressure, PN Ц up to 0,6 Mpa (6 kgf/cm2).
Working medium: liquid, not aggressive medium.
Temperature of working medium - up to 60oC.
Ambient temperature - up to -20oC.
Installating position on the pipeline - any.
Material of the main parts - aluminium alloy, rubber.

Nominal Bore, DN mm

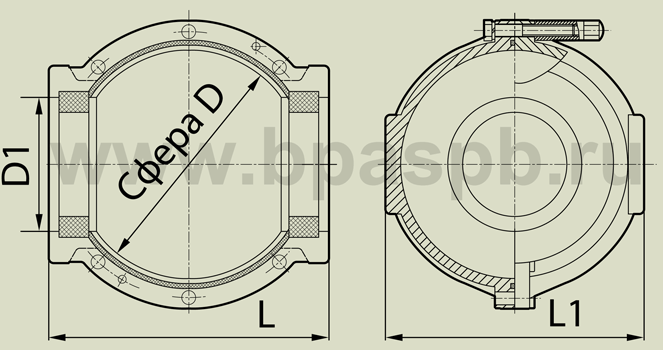

Dimensions, mm

Weight, kg

D

D1

L

L1

50

174

74

234

206

5,2

65

195 92 250 216 7,1
100 230 135 282 272 10,9
150 284 185 320 320 16,5

200

340

240

335

370

22,7
