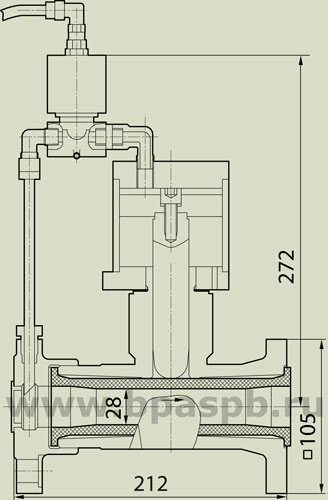

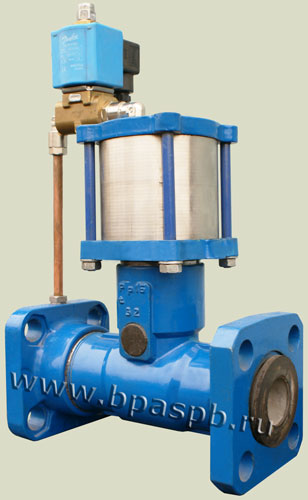

Device of pipeline emergency closing BPA96001







The fast-operating automatic device of pipeline emergency closing is intended for operative disconnection of water supply at controlled pipeline parts.
The device works from remote controle and closes the pipeline by the electric control signal.
Nominal pressure, PN - 0,6 MPa (6 kgf/cm2).
Minimal pressure of operation - 0,2 MPa (2 kgf/cm2).
Nominal bore - 32 mm.
Material - aluminium alloy.
Connection - flanged joints.
Working medium: water.
Temperature of working medium: up to 130oC.
Direction of working medium - by the arrow at the body.
Full tight shut-off.
Low flow resistance factor - 0,2.
