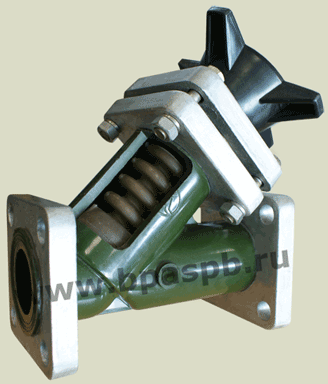

Bellows Globe Valve, 15p67p, P26523

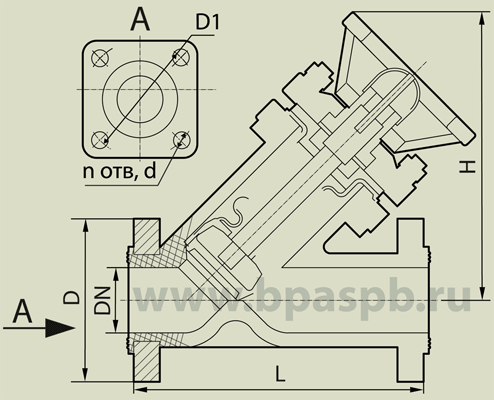

Drawing symbol DN L H D D1 d n
P26523-025 25 160 220 □ 90 85 14 4
P26523-032 32 180 220 □ 105 100 18
P26523-050 50 230 220 □ 125 125
P26523-100 100 350 300 Ø 205 170


Drawing symbol

 Version Table of figures PN
(kgf/cm2)
MPa 		Temperature, oÑ Material of main parts Weight, kg
working medium ambient Body Âellows

P26523-025

Normal

 15p67p

6,0
(0,6)

 100

from -5
to +40

Pentaplast BG 1

Fluoroplast
F-42LD-2

2,47

-01

 15p67p1  2,84
-02

Export

15p67pe

 2,47
-03

15p67p1e

 2,84
*-04 Normal  15p67p2  70

Polypropylene

 2,17
*-05 15p67p3  2,62
-06 Export 15p67p2e 2,17
-07 15p67p3e 2,62
-08 Normal  15p67p4  from -30
to +70

from -30
to +40

Frost-resistant polypropylene

 2,62
-09 Export 15p67p4e 2,62
-10 Vacuum 15p67r

from 10-3 mm.mer. to 6,0 (0,6)

 70

from -5
to +40

Polypropylene

 2,62

P26523-032

Normal

 15p67p 6,0
(0,6)		 100 from -5
to +40		 Pentaplast BG 1  Fluoroplast
F-42LD-2		 2,62
-01 15p67p1  2,98
-02 Export 15p67pe  2,62
-03 15p67p1e  2,98
*-04 Normal  15p67p2  70 Polypropylene 2,33
*-05 15p67p3  2,70
-06 Export 15p67p2e 2,47
-07

15p67p3e

 2,84
-08

Normal

 15p67p4

from -30
to +70

 from -30
to +40

Frost-resistant polypropylene

 2,47
-09

Export

 15p67p4e 2,84
-10

Vacuum

 15p67r

from 10-3 mm.mer. to 6,0 (0,6)

70

from -5
to +40

Polypropylene

 2,17
-11 15p67pe  2,62

P26523-050

Normal

 15p67p 6,0
(0,6)		 100 from -5
to +40		 Pentaplast BG 1 Fluoroplast
F-42LD-2		 3,39
-01 15p67p1  3,76
-02 Export 15p67pe  3,39
-03 15p67p1e  3,76
*-04

Normal

 15p67p2  70 Polypropylene 2,86
*-05 15p67p3  3,31
-06

Export

 15p67p2e 2,86
-07

15p67p3e

 3,31
-08 Normal  15p67p4

from -30
to +70

 from -30
to +40

Frost-resistant polypropylene

 3,31
-09

Export

 15p67p4e 3,31
-10 Vacuum 15p67r

from 10-3 mm.mer. to 6,0 (0,6)

70

from -5
to +40

Polypropylene

 3,40
-11 15p67re  3,40

P26523-100

 Normal  15p67p

4,0 (0,4)

 100

from -5
to +40

Pentaplast BG 1

Fluoroplast
F-42LD-2

 12,2
-01 Export 15p67pe
*-02 Normal  15p67p2 70

Polypropylene

 11,8
-03 Export 15p67p2e
-04 Normal  15p67p3 from -30
to +70

from -30
to +40

Frost-resistant polypropylene

 11,0
-05 Export 15p67p3e

Working medium P26523-025, 01, 02, 03,
P26523-032, 01, 02, 03,
P26523-050, 01, 02, 03,
P26523-100, 01		 P26523-025-04-09,
P26523-032-04-09,
P26523-050-04-09,
P26523-100-02-05
Concentration,
% 		Temperature,
îÑ		 Concentration,
% 		Temperature,
îÑ

Nitric acid

up to 10
up to 30
up to 50

100
65
27

20

50

Sulfuric acid

 up to 60
up to 96		 100
65		 up to 30
up to 40
up to 70		 60
40
20

Hydrochloric acid

 up to 37 100 up to 30
above 30		 60
20

Phosphoric acid

 up to 85 100 up to 80 60

Fluoric acid

 up to 30
up to 40
up to 60		 100
80
27		 up to 40
up to 60		 50
20

Hydrofluoric acid

Hydrofluoric acid

Hydrofluosilicic acid

 up to 35 100 up to 30 20

Acetic acid

 up to 80 100 up to 80
up to 60		 40
60

Formic acid

 up to 90 100 up to 50 60

Acids - citric, butyric, maleic, benzoic

 any 100 any 70

Solutions of salts mineral and organic acids

 any 100 any 70

Alkaline solutions

 any 100 any 70

Hydrogen sulfide

 - 100 - 70

Hydrogen chloride (dry gas)
- moist gas

 -
-		 25
from 20 up to 100		 -
30		 -
60

Ammonia gas

 - 100 - 70

Formaldehyde

 50 100 up to 40
up to 10		 30
40

Saturated hydrocarbons - methane, butane, propane, etc.

 any 100 - -

Carbon tetrachloride

 - 100 - -

Ethanol

 96 100 up to 96 70

Use of valve with following media is prohibited

 Fuming nitric acid, oleum, chlorosulfonic acid, perchlorocthylene, cyclohexanone, dimethyl-formamide, acetone, ketone, esters. Tetrahydrofurane, benzine, tetramine, trichlorethylene, tetrachlormethane, triethanolamine, tetrachloroethane, benzol, totuol.

Application of screw-type bellows quarantees tightness to environment.
Direction of working medium - under the plug.
Working position - any.
Full tight shut - off.
The vacuum valve must be vacuum - tight in the plug and to envirounment.
Connection - flanges.
Sizes of flanges of the pipeline - to the Russian standard, at PN 6 kgf/cm2 (0.6 MPa) for DN 25, 32, 50 and at PN 4 kgf/cm2(0.4 MPa) for DN 100.
Hydraulic resistance factor for DN 25, 32, 50 - not more than 4,5; for DN 100 - not more than 6.
