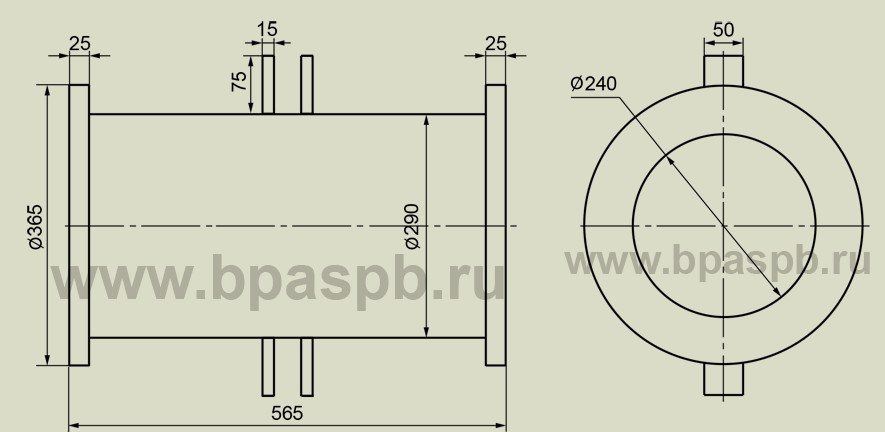

Sleeve BPA 98014-250.1 for pinch valves type 32a1r



The sleeve is a spare part and is designed for installation in the pinch valves type 32à1ð as shutoff and flow element.


Nominal bore, DN – 250mm.
Working pressure Pw – 6 kgf/cm2 (0,6 MPa).
Temperature of working medium – from 0 up to +80OC.
Working medium: pulp, bulk, liquid non-aggressive and slightly aggressive (pH 5...9) media (except for acetic and nitric acids).
Sleeve material - rubber compound.
